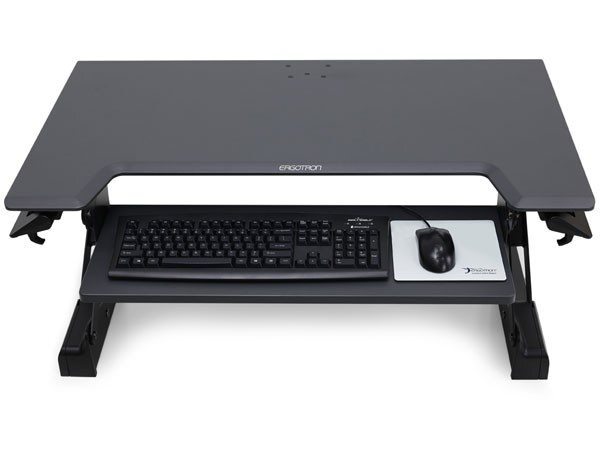

ErgoTron Workfit TL

The Ergotron Workfit TL moves straight up and down with the handles at the front of the unit. No reaching or bending over is required meaning back strain is greatly reduced. It also has a strong lift assist mechanism which again puts it a class above its competitors.

WorkFit-TL saves space because it moves straight up and down, always staying within the footprint of your desktop. The platform is extremely stable throughout its range of motion—one can freely lean on it while working without worry of tip or height-drop. Add an optional monitor mount if you want your VESA compatible monitor to sit on a mount. See specifications at bottom of page.

BENEFITS

WorkFit-TL features a larger keyboard tray, wider worksurface and higher weight capacity

Add an accessory monitor mount kit: Attach your display(s) with a riser to provide independent screen adjustment while clearing worksurface space

Modify an existing office space or cubicle by simply adding a WorkFit-TL to an open tabletop, without the cost of expensive professional installers

Ships fully assembled.

Sits directly on top of desk—no special mounting or tool-adjustments required for installation

Provides 15 inches (38 cm) of vertical adjustment

Instantly move to sit or stand as you work: Simply release hand-brake levers on either side of unit to position the surface higher or lower No cranks or motors to engage.

Counterbalancing mechanism uses CF™ technology to facilitate quick height adjustment

Extremely stable and solid platform Space-saving design does not protrude beyond tabletop

Works well in corner desk configurations; fits on surfaces as shallow as 19" (48 cm) Tested and guaranteed: Full 5-year warranty!

WorkFit-TL Sit-Stand Desktop Workstation (black)

Ships fully assembled; no tool-adjustments needed for installation

Keyboard moves in tandem with the worksurface. Tray is positioned 4.5" (11.4 cm) below worksurface to maintain ergonomic spacing between screen height and keyboard

Displays can be placed directly on the worksurface. Alternatively, use our monitor mount kits to integrate displays into system (see accessories)

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Includes 5" lift engine, one (1) LD monitor pivot, cable management tube and ties, attachment hardware. Compatible with WorkFit-TL and WorkFit-PD products.

WORKFIT SINGLE LD MONITOR KIT

Upgrade your WorkFit to hold an LCD above the desktop. Offers 5" (13 cm) of height adjustment and tilt.

Easily lift and tilt the screen to proper height for unsurpassed ergonomic comfort. For use with WorkFit-TL products.

BENEFITS

Holds display above worksurface, freeing up space

Cost-effective height-adjustable mounting solution

Simple installation and effortless operation Patented CF™ motion technology provides premium ease-of-use display adjustment Increase viewing comfort by reducing eye, back and neck strain

Add an accessory Notebook Tray to use with a laptop computer and external keyboard

WORKFIT DUAL MONITOR KIT

Upgrade your WorkFit to hold two LCDs above the desktop.

Offers 5" (13 cm) of height adjustment.

Easily lift LCD screens to proper height for ergonomic comfort. For use with WorkFit-TL products.

BENEFITS

Holds displays above worksurface, freeing up space Cost-effective height-adjustable mounting solution

Simple installation and effortless operation Patented CF™ motion technology provides premium ease-of-use display adjustment Increase viewing comfort by reducing eye, back and neck strain

Increase productivity and reduce errors—conclusion of scientific study of multi-monitor workstations**

WorkFit Dual Monitor Kit (black)

Includes 5" lift engine, two (2) monitor pivots, dual bow, cable management tube and ties, attachment hardware Compatible with WorkFit-TL and WorkFit-PD products

Maximum outside width of display is 24.5" (62 cm) when displays are 2" (5 cm) thick.

Accommodates most displays with screen-size up to 24" as well as some displays with screens as large as 26". Actual allowable width of displays will vary slightly depending on display thickness

* Weight Capacity: LCD mount capacity = 6–14 lbs (2.7–6.3 kg) each, 12–28 lbs (5.5—12.7 kg) total ** 33% fewer errors reported when using multi-screen configurations; 24% of workers feel more comfortable when using multiple monitors. Source: NEC Display Solutions, University of Utah, ATI Technologies 2003 study, “Productivity and Multi-Screen Displays” Ergotron Workfit TL

Screen: ≤ 30"
Capacity: 10–40 lbs4.5–18 kg
Lift: 15"38 cm
Part Number: 33-406-085

WorkFit-TL Sit-Stand Desktop Workstation (black)

Footprint: 37.5" x 25" (95 x 64 cm)
Keyboard tray dimensions: 27.5" x 11" (69 x 28 cm)
Product Weight: 56 lbs (25.5 kg)
Shipping Dimensions: 42" x 33.5" x 8.25" (107 x 85 x 21 cm)
Shipping Weight: 62 lbs (28.2 kg)
Warranty: Five (5) years
Fits on desk surfaces 24" (61 cm) deep or larger

WORKFIT SINGLE LD MONITOR KIT

Screen: ≤24"
Capacity: 6–16 lbs2.7–7.3 kg *
Lift: 5"12.7 cm
Tilt: 30°
Rotation: 360°
VESA: MIS-D
Warranty: 5 years
Part Number: 97-905 (replaces 97-664)
Description: WorkFit Single LD Monitor Kit (black)
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Product Weight: 6.6 lbs (3.6 kg)
Shipping Dimensions: 25.2" x 5" x 6.9" (64 x 13 x 17 cm)
Shipping Weight: 7.9 lbs (3.6 kg)
Warranty: Five (5) years
